TRUNK PICTURES

1969 Ford Mustang Convertible

You ever tried to take a good picture of a trunk?????

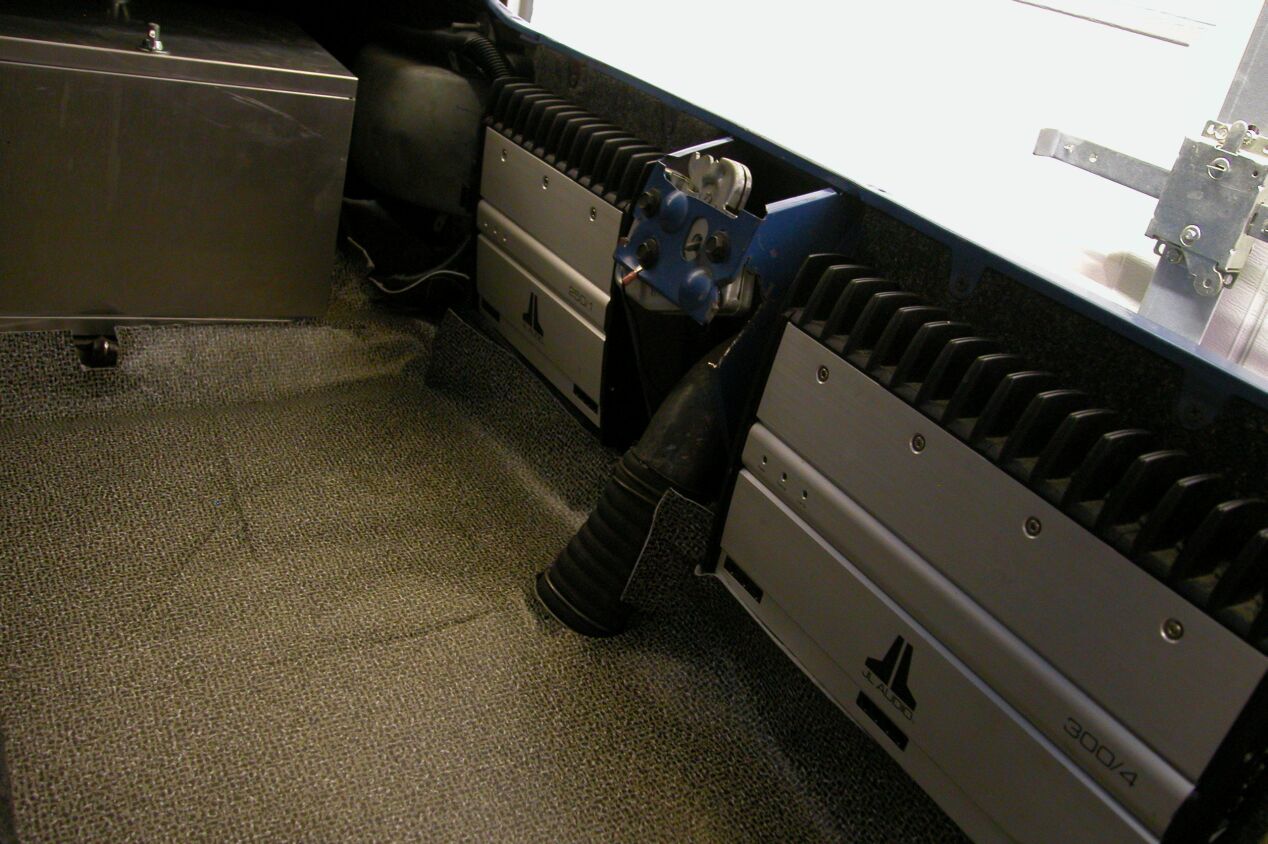

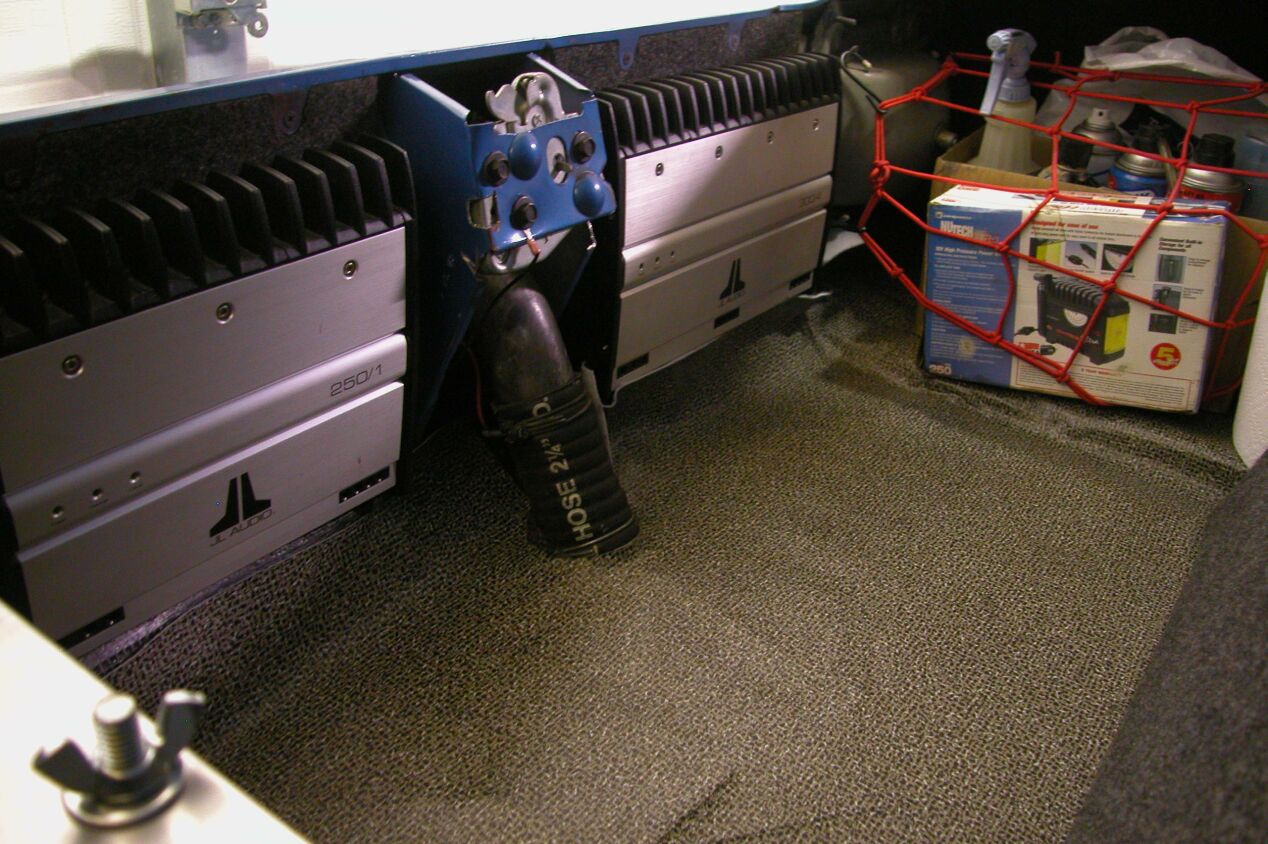

Wanted to leave enough room in the trunk for golf clubs or space to take trips, but also wanted the value of the battery in the trunk and also an enclosure for the stereo subwoofers. Amps are tucked up into the rear taillight panel and all wiring run around the tank and under the mat.

Clicking on the images below will enlarge the shots

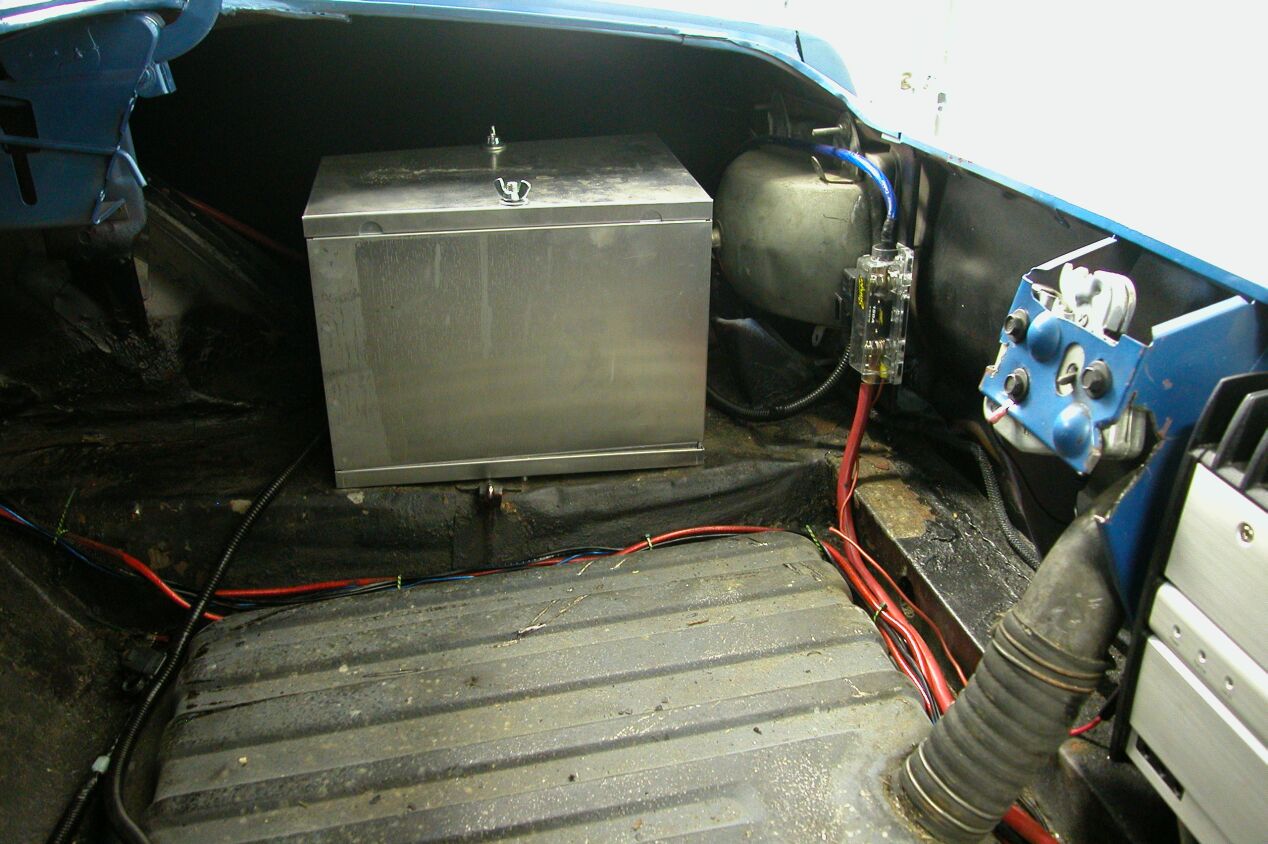

Taylor battery box with Optima battery inside.  Big redwire is running power to the amplifier and 150 amp fuse.  Also mounted an electric trunk release.

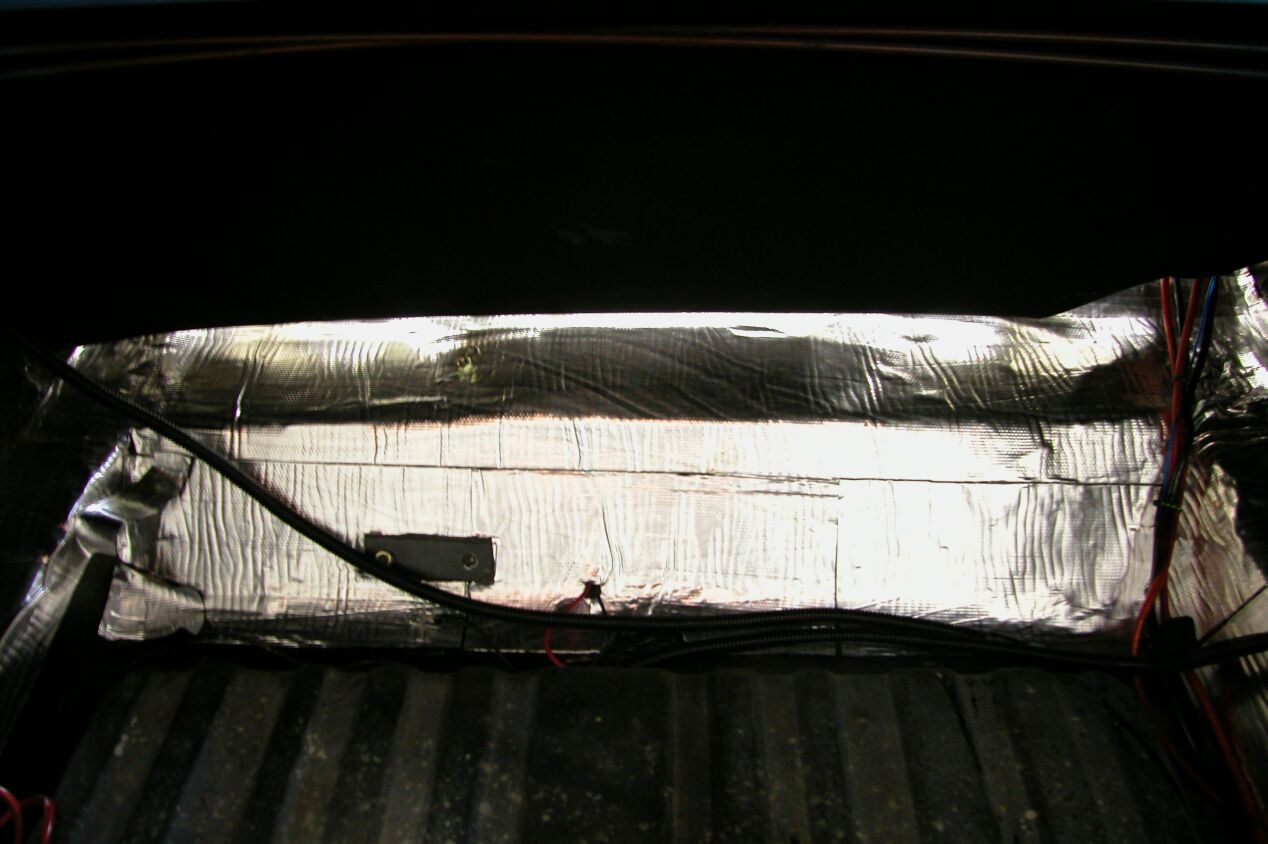

Installed the B-Quiet insulation in the truck as well.  Small bracket is a back up plate for the Holley electric fuel pump mounted below.

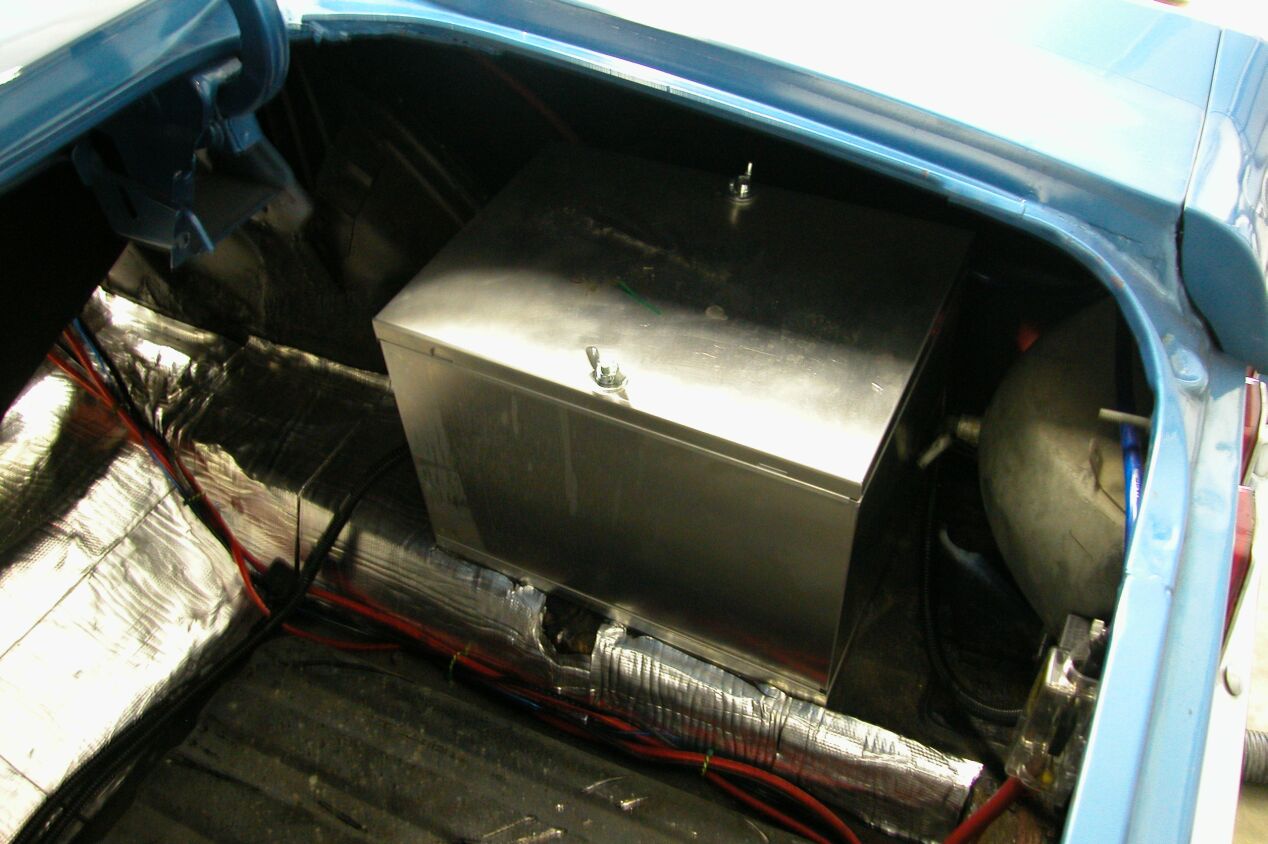

Put the B-Quiet all around the fuel tank

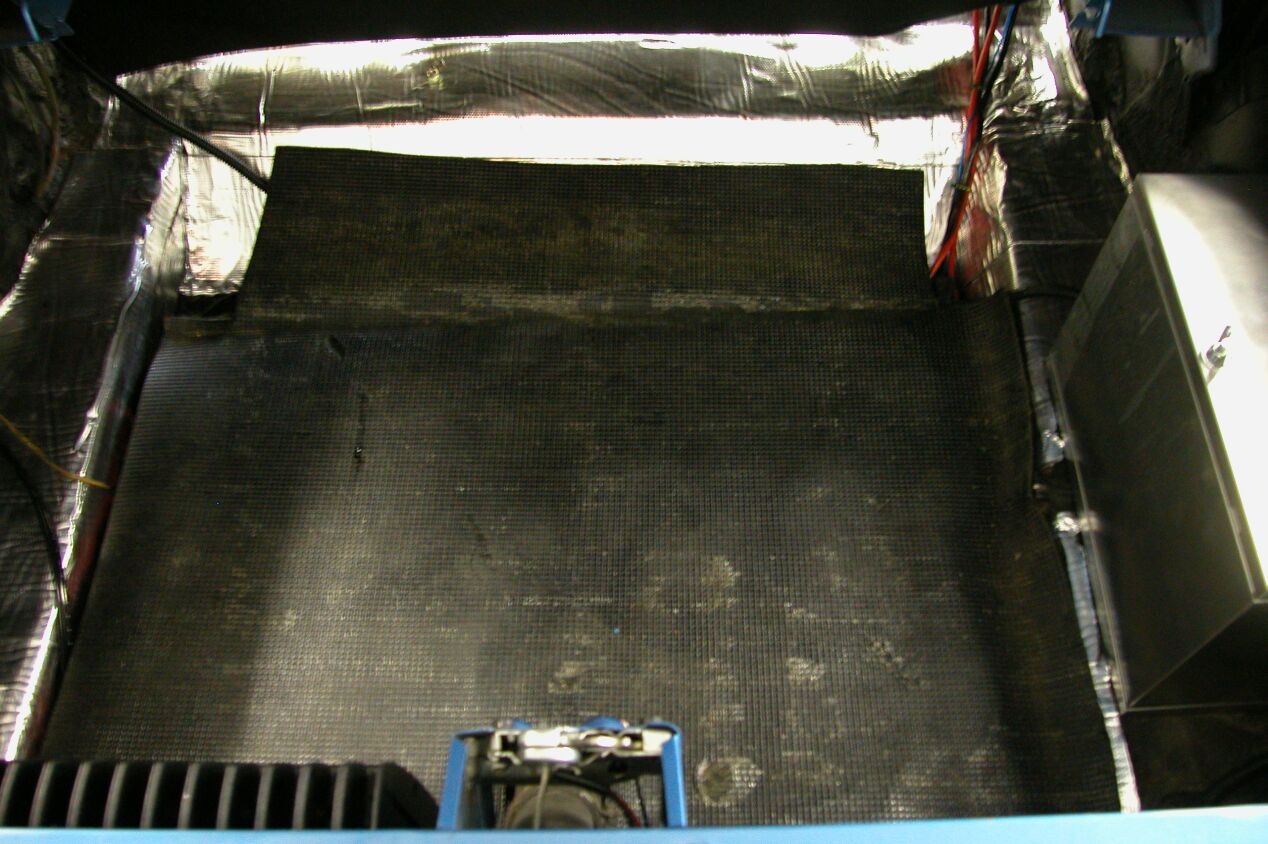

Standard rubber mat goes on top of fuel tank and overlaps the B-Quiet

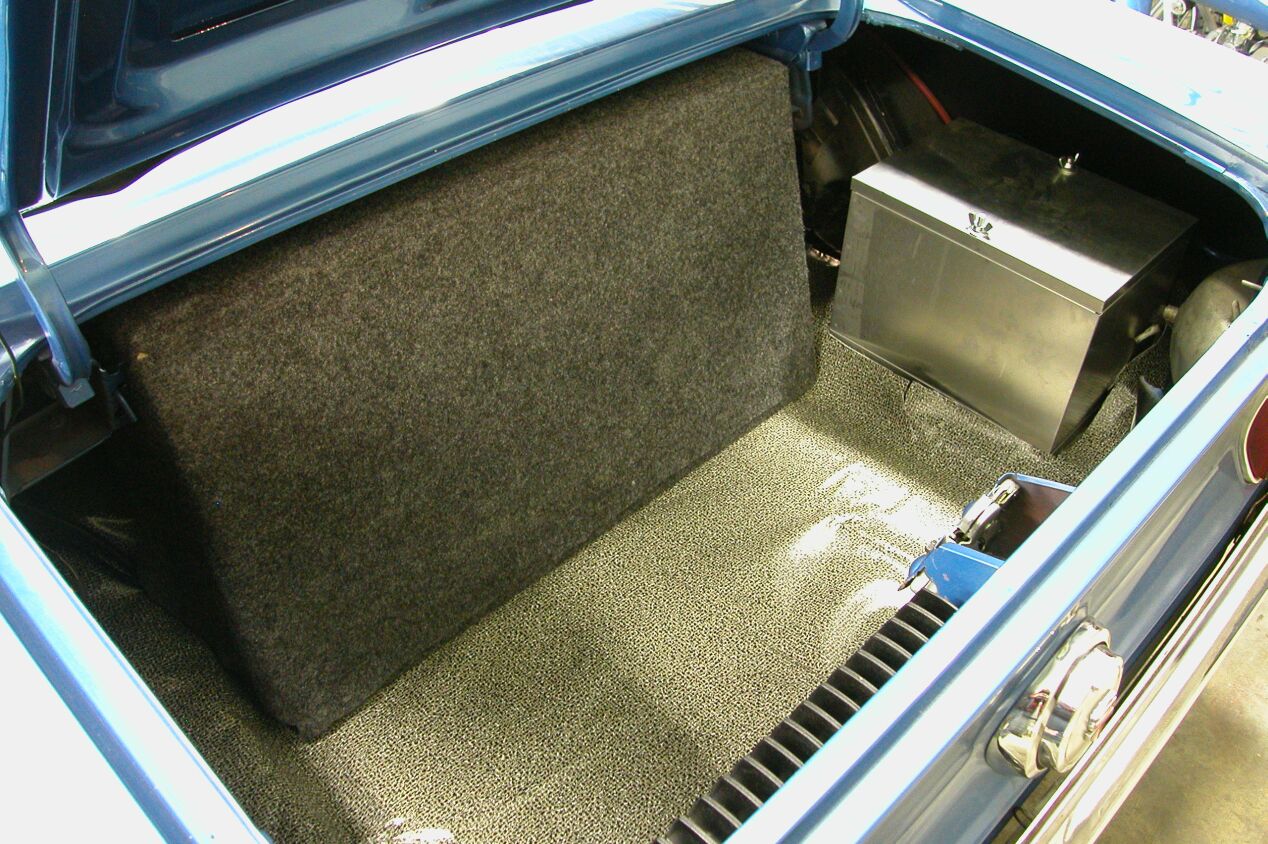

Subwoofer enclosure in place with new trunk mat.

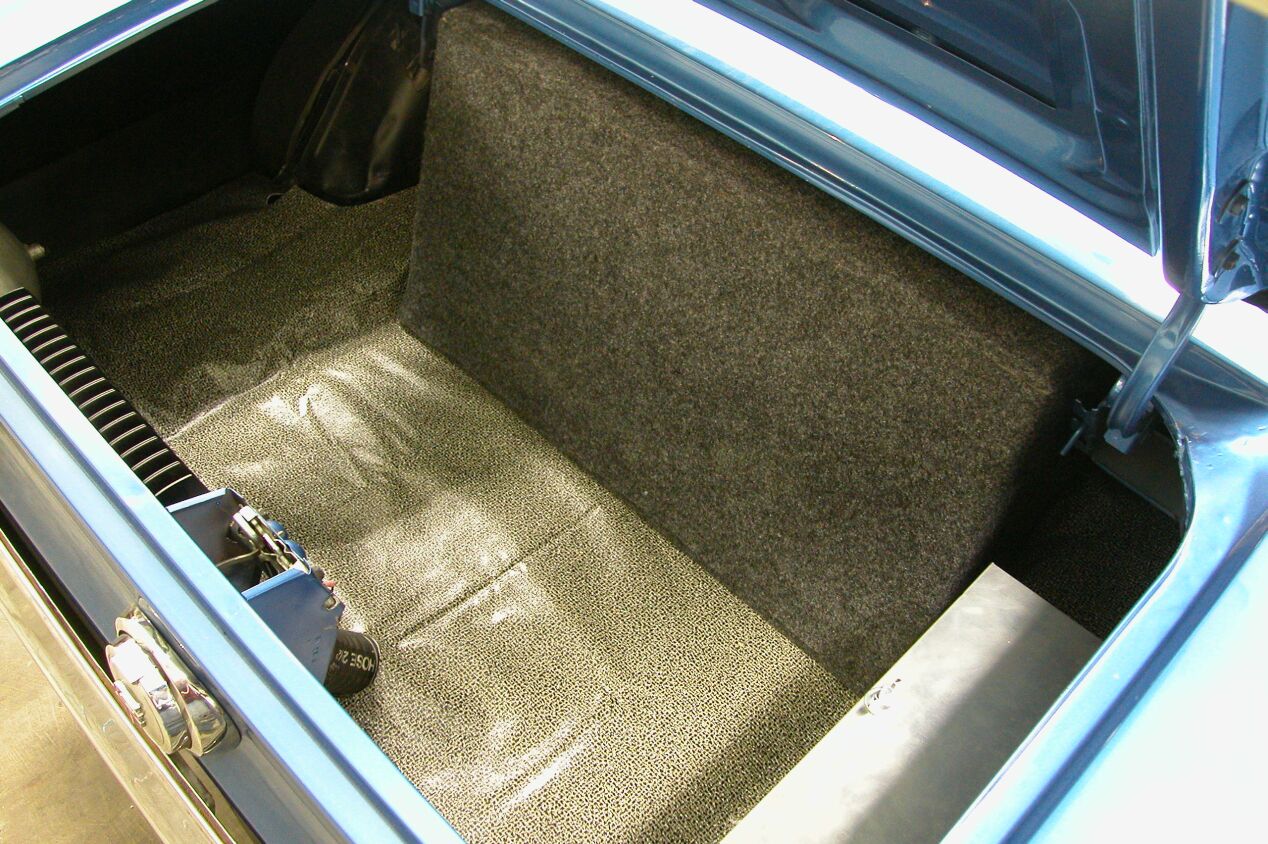

The left hand wheel well is open and lets you put some longer items in the trunk.
