SL70 K0
Wiring Harness
For the
past couple of years, there has been a reproduced SL70 K0
main wiring harness available on the market. These
harnesses have been sold through several retail outlets, but
recently it has been discovered that there is an issue with
everyone of them made.
Essentially,
there are two problems with the harness and unless you are
very diligent with making everything work on the bike, you
may not have found the issues.
If you
install the harness 'as-is', the bike will still start and
run, but the headlight will not function. If you
happen to find that problem with the wiring that is pinned
incorrectly, the lights will come on, but will be very
dim. The second issue is harder to fix and requires
tearing into the harness.
I offer an
exchange service for repaired harness. If you send me
your harness and $75, I send you back one that is repaired
and ready to be installed.
I also sell the repaired
harnesses outright for $100.

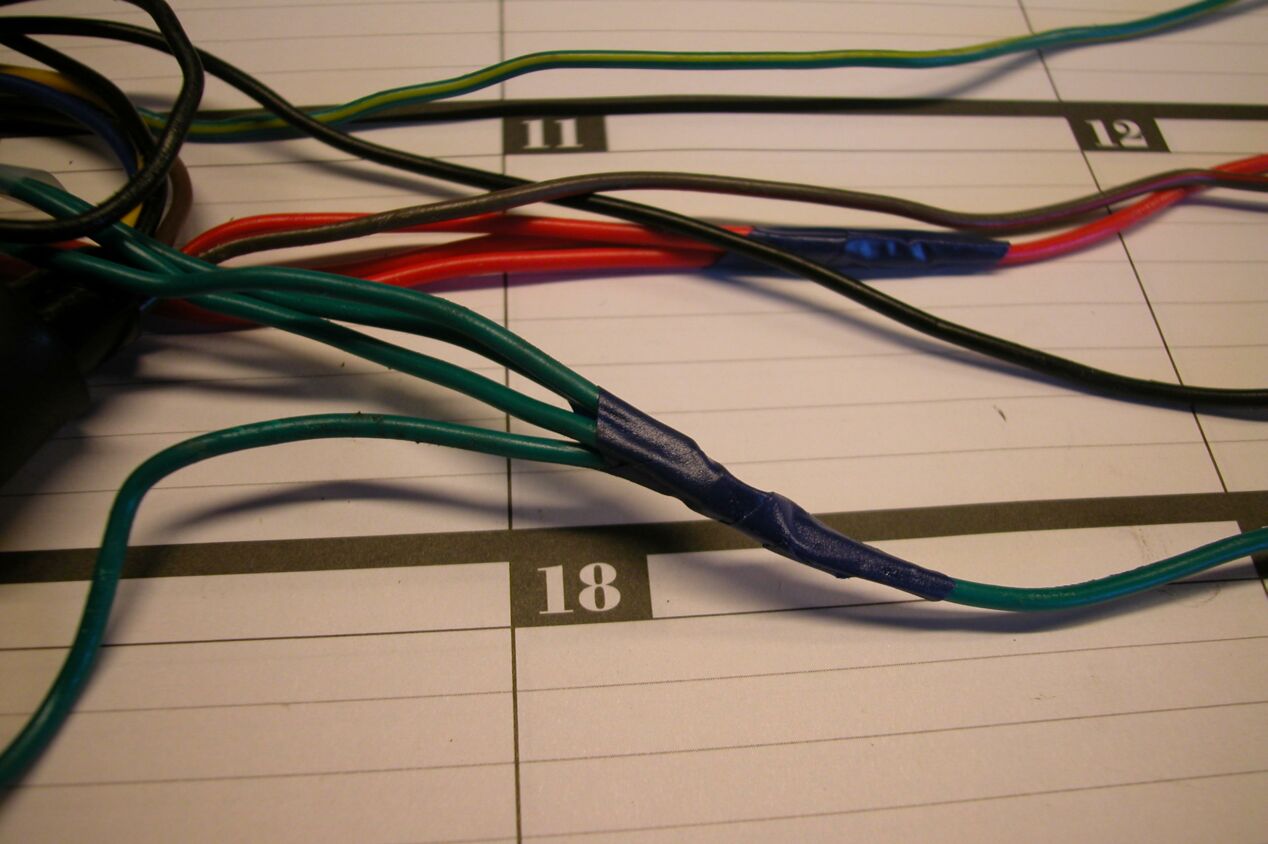

There are some wires that are incorrectly
tied together inside the harness.

Here is what you will get if you remove
the connector pins and put them in the correct
order.

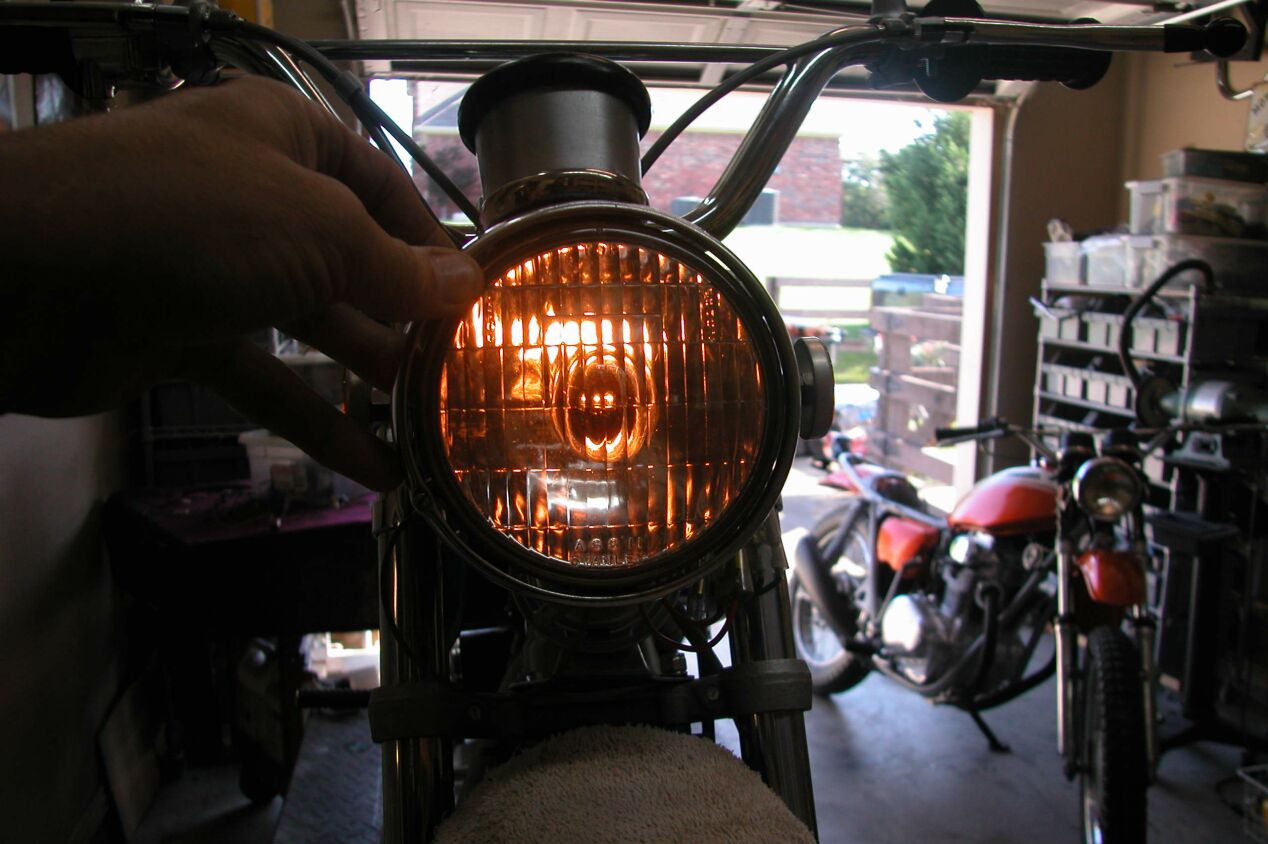

A very dim
headlight.

SL70 K0 Ignition Switch.
Brand new switch. $75 - The SL70 K0 ignition
switch is unique to that bike. The K1 switch will not
work without changing out the entire wire harness.
This is a genuine Honda switch and not a reproduction.
